Product Description

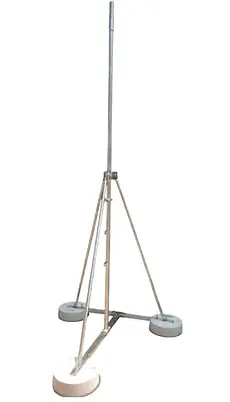

The Air Termination System Safety Mast with Concrete Base (PM Series) is a heavy-duty, free-standing lightning protection mast designed to safely intercept and direct lightning strikes to the grounding system.
Engineered with a stainless steel tripod stand, high-conductivity aluminum air terminal rod, and reinforced concrete mounting blocks, this system provides superior structural stability, corrosion resistance, and long-term durability in harsh weather conditions.
This mast is ideal for rooftop lightning protection, industrial structures, telecom towers, solar plants, commercial buildings, and warehouses where non-penetrative installation is required.
Product Code
PM
Product
Code
Total Mast Height
(Mtr)
Assembly Wight
(Kg)
PM10
PM6
10 Mtr
6 Mtr
125 Kgs Apx
120 Kgs Apx
Any other height on specific inquiry
Frequently Asked Questions
What is an Air Termination System Safety Mast used for?
+
An Air Termination System Safety Mast is used in a Lightning Protection System (LPS) to intercept lightning strikes and safely transfer the surge to the earthing system. It protects buildings, industrial plants, solar projects, and telecom towers from lightning damage.
Does the Free Standing Tripod Lightning Mast require rooftop drilling?
+
No. The Tripod Lightning Mast with Concrete Base is a non-penetrative rooftop solution. It is stabilized using 3 x 32 kg reinforced concrete mounting blocks, eliminating the need for drilling or structural damage.
What materials are used in the PM Series Lightning Protection Mast?
+
The PM Series mast includes a stainless steel tripod stand, aluminum air terminal rod, nitrile rubber isolator sheet, and glass fiber reinforced concrete blocks for corrosion resistance, durability, and long-term outdoor performance.
Can I get a customized Lightning Protection Mast for my project?
+
Yes. Customized Lightning Protection Masts are available based on required height, wind load conditions, rooftop type, and project specifications for commercial and industrial applications.
